Stride primitives with more tesselation options and optional caps

vvvv gamma feature
1

hi all,

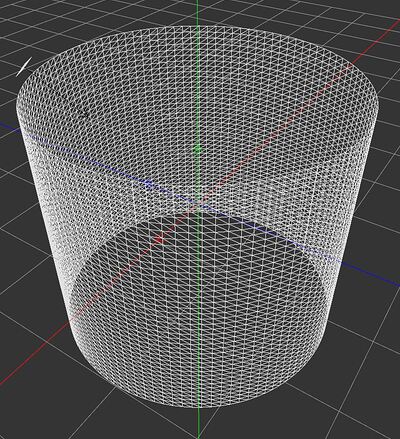

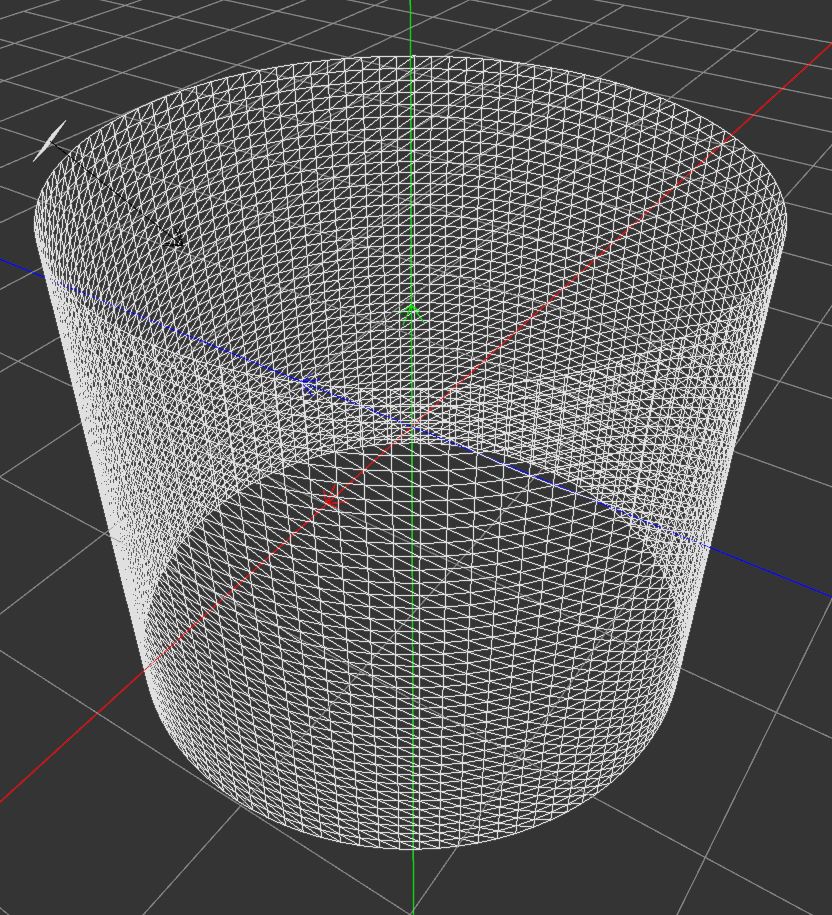

it would be nice if the build in primitives had tesselation options for both dimensions and the option to turn off caps. I often have to make the detour via 3d modeling if I need a tesselated circle or parts of a cylinder

cyl
cyl1438×1318 60.1 KB

2

Unfortunately we don’t have much control over that, since we just use what Stride provides here:
https://doc.stride3d.net/4.0/en/api/Stride.Graphics.GeometricPrimitives.html

So we would need to change that in the Stride source code.
Another way would be to finally publish a wrapper for this very nice looking meshing library:

It was used in the workshop “Turning a .NET library into a VL library”:

3

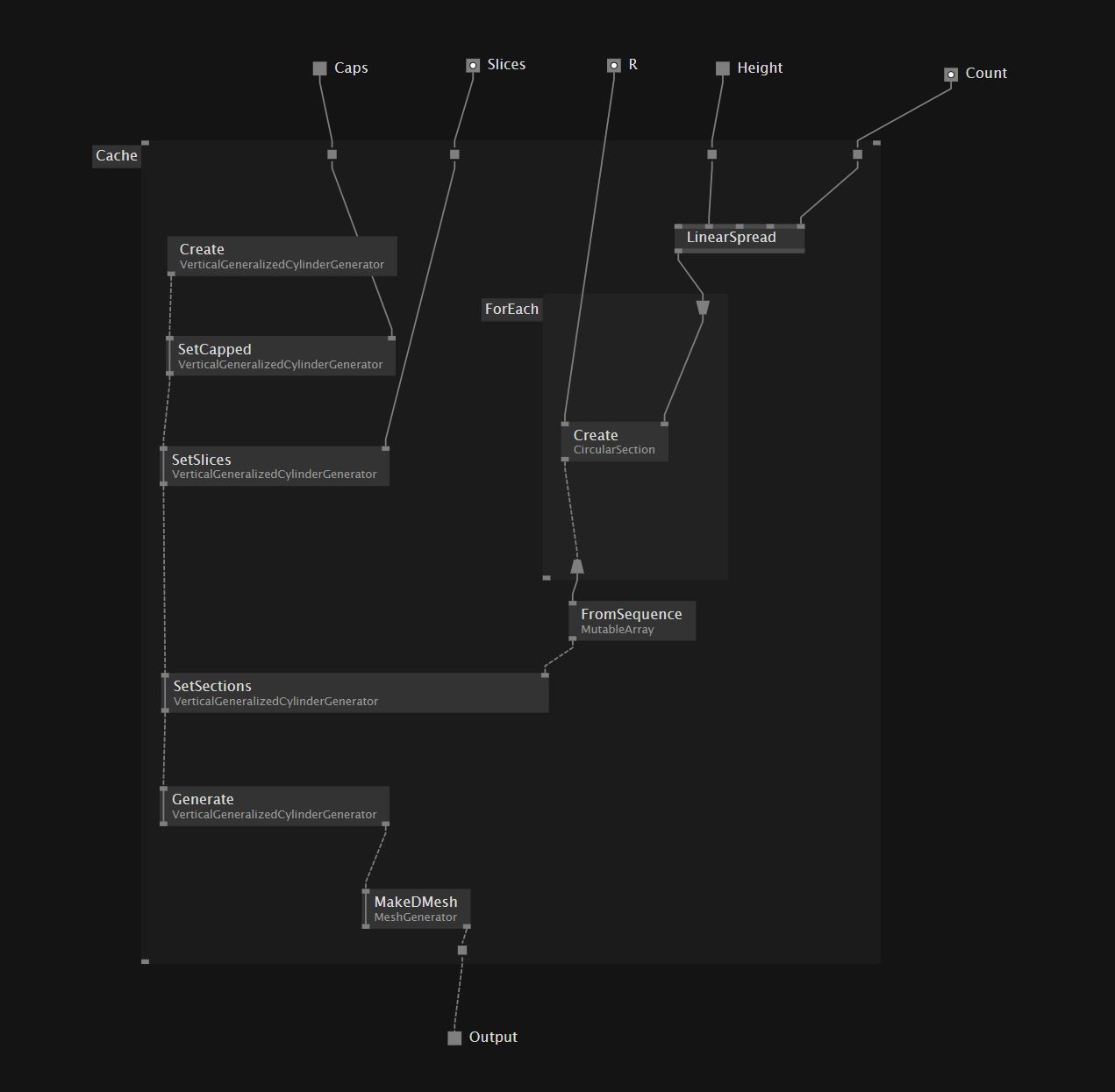

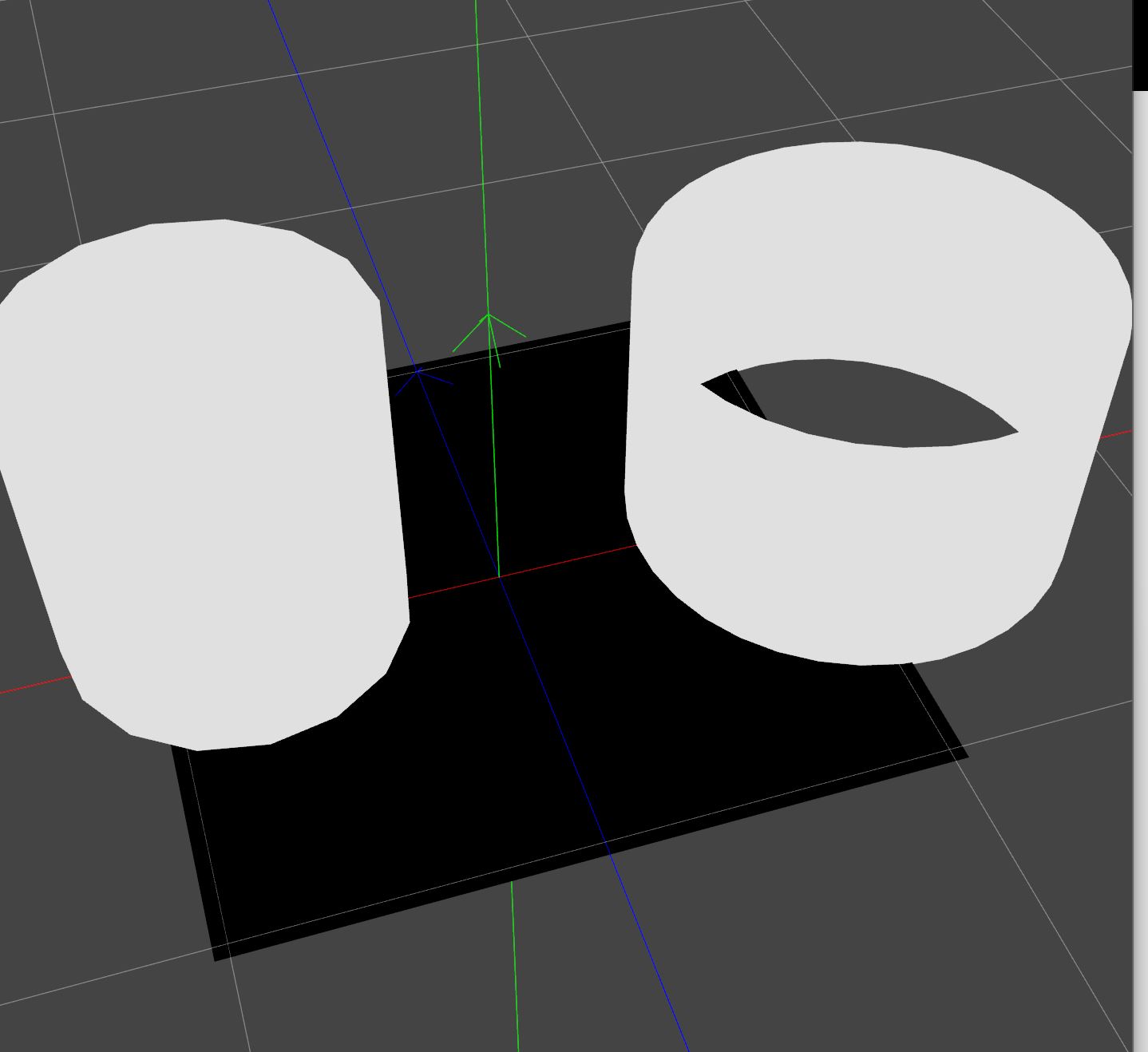

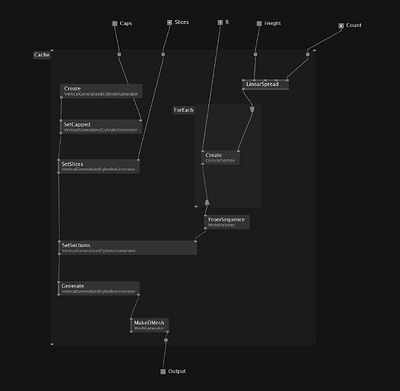

I had a look at geometry3Sharp. Cylinder Tesselation and Caps options are there, I can create multiple circular section to subdivide the hull on Y, but I find no way to tesselate the caps itself.

g3
g3832×915 268 KB

gg
gg1271×1245 48.8 KB

4

@tonfilm Any update on that on the Stride side or the Wrapper?

5

You can follow he progress on GitHub, it will be reviewed and merged soon-ish…

6

For those following, an updated detailed list of the upcoming features and changes is now available: Geometry3 sharp primitives by ravazquez · Pull Request #561 · vvvv/VL.Stride · GitHub
