Join and organize meetups on MobilizonHey,

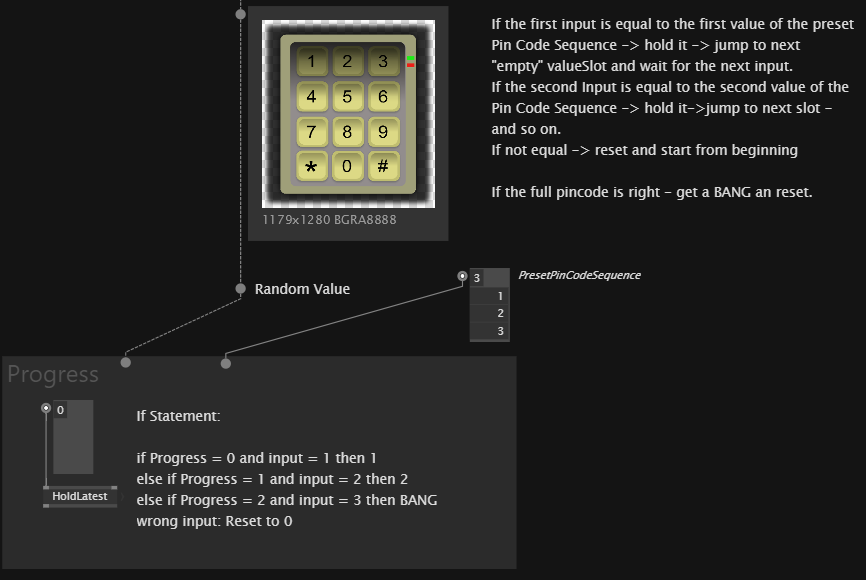

Iam looking for a simple way to compare incoming values and their order with a fix sequence of values. Like a password or like this:
So the Bang will be there when the code is right.(1->2->3: access, 1->3->2: access denied → reset input )
I think its simple but I dont get it. Maybe there is already a special Node…
regards
jakob
Have a look at AND (Spectral)
Yes interesting for the patch, but the order is importand. In AND(Spectral) or AND it doesn’t matter which order to have a BANG.
Need somthing like a Pin or a telephone number.
Could you show us the patch?
In the example shown, so long as you’re entering and keeping the values as you add them, the AND will be true; the Changed bangs.
With the Break you also get to tell if and when a code entry is wrong and no new inputs will let it bang.
What you want is multiflipflop and a switch prolly, or accumulator and for loop (but it’s more tricky)
Yes I think so, but I think it is a standard code for all PinCodeDevices - so there is already a solution anywhere…
Erm, are you actually trying anything @golemprototype, because you haven’t demonstrate any engagement with the logic as a patch.
Yes. in my case I have a setup with an old dial-phone and an arduino.
It works so far that I can get the numbers out and when all numbers where sent I get a Bang. But the order of the numbers is arbitrarily.
So, I think @yar send the solution for my proplem. That is what I was looking for!
It will be one toy for an exitgame with students in June. Thanks

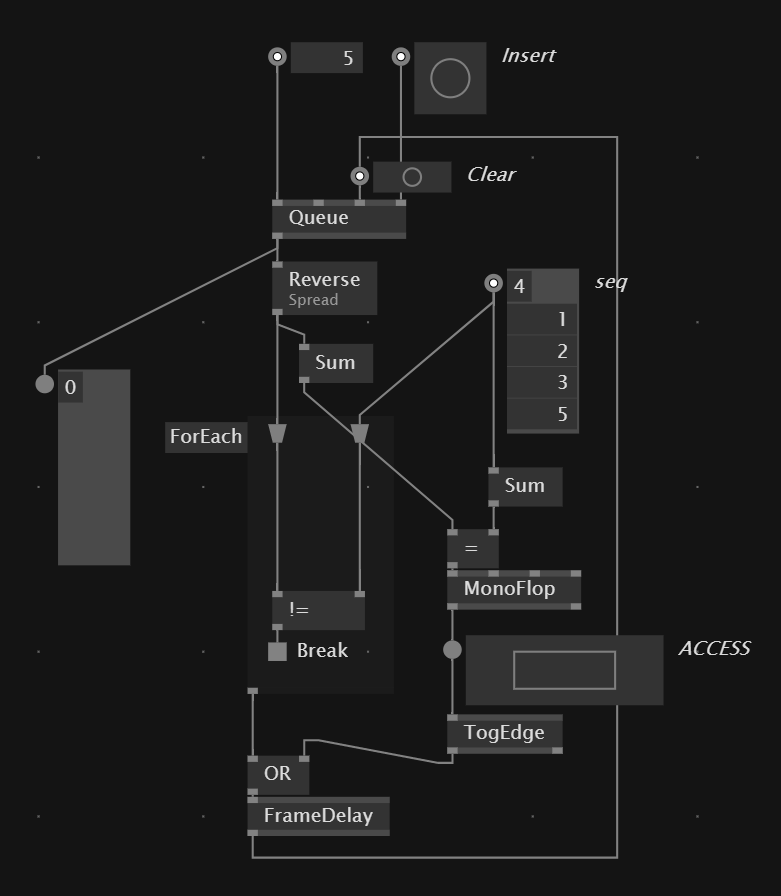

Another solution:
CheckSequence.vl (31.7 KB)
Yes @gregsn works too for me, thanks to all for support!
