Quaternion rotation nodes have inconsistent application of Euler angles

[tobyk]

Issue

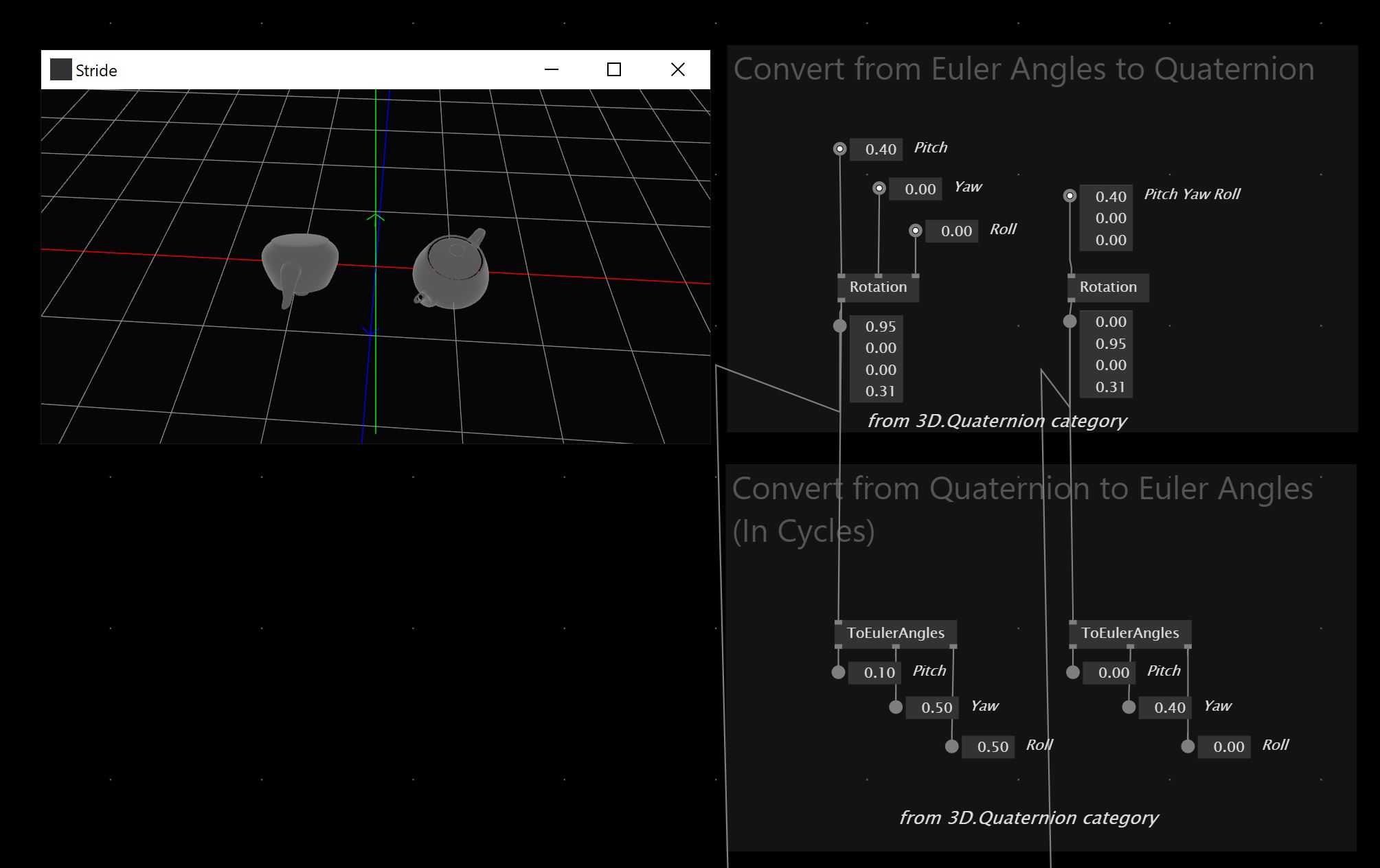

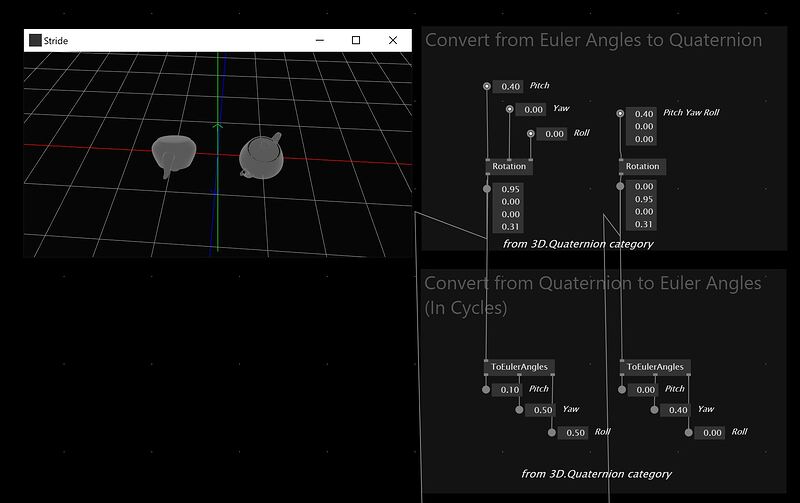

Both ‘Rotation’ [3D.Quaternion] and ‘Rotation (Vector3)’ [3D.Quaternion] claim to process euler angles by yaw x pitch x roll (check the tooltip).

However they give different results. Seems like one of them is wrong.

QtoEulerCheck.vl (27.5 KB)

Related

Rotation (Vector3) Quaternion switches axis?

[motzi]

the nodes apply the transformations differently, as can be seen in the code:

public static void RotationVector(Vector3 pitchYawRoll, out Quaternion result)
{
    Stride.Core.Mathematics.Quaternion.RotationYawPitchRoll(pitchYawRoll.X * Float32Extensions.cyclesToRadians,
        pitchYawRoll.Y * Float32Extensions.cyclesToRadians,
        pitchYawRoll.Z * Float32Extensions.cyclesToRadians, out result);
}

this is probably wrong, as the Vector3 pitchYawRoll is input in the function called RotationYawPitchRoll in the wrong order (x,y,z instead of y,x,z)

[motzi]

i created an issue on github

[Elias]

Thanks for the report. Will be fixed in upcoming preview (>= 5.3-167).
