Kinect2 Depthtexture flickering after transform

vvvv gamma question
1

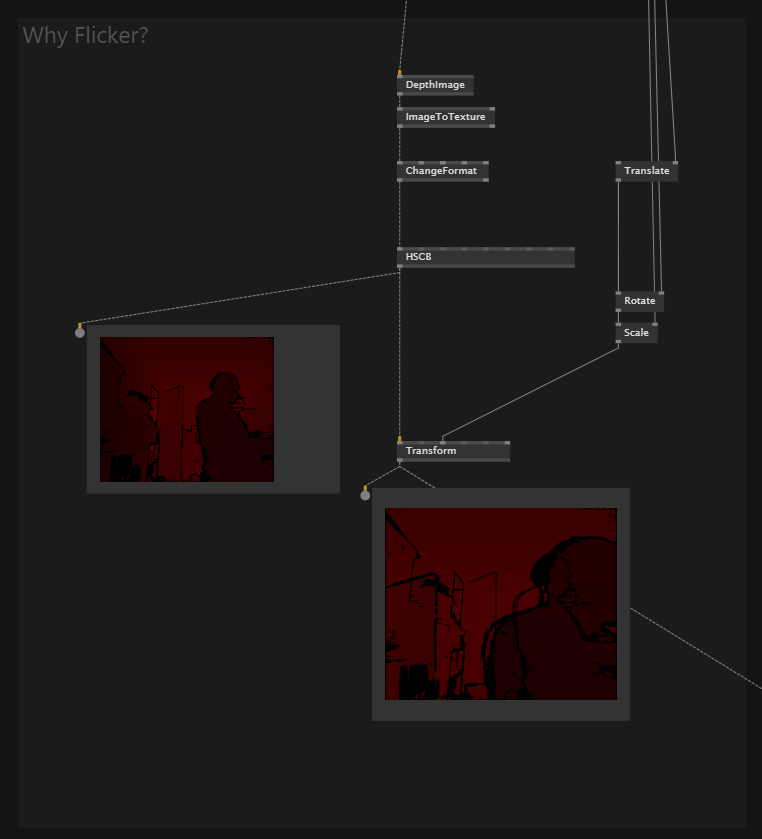

I am guessing that it might have something to do with it being immutable, but why is the texture flickering between the transformed and untransformed texture after I am transforming it?

image762×839 24.5 KB

It is not flickering all the time, but when it is, the untransformed image is somehow added to it.

Sune

2

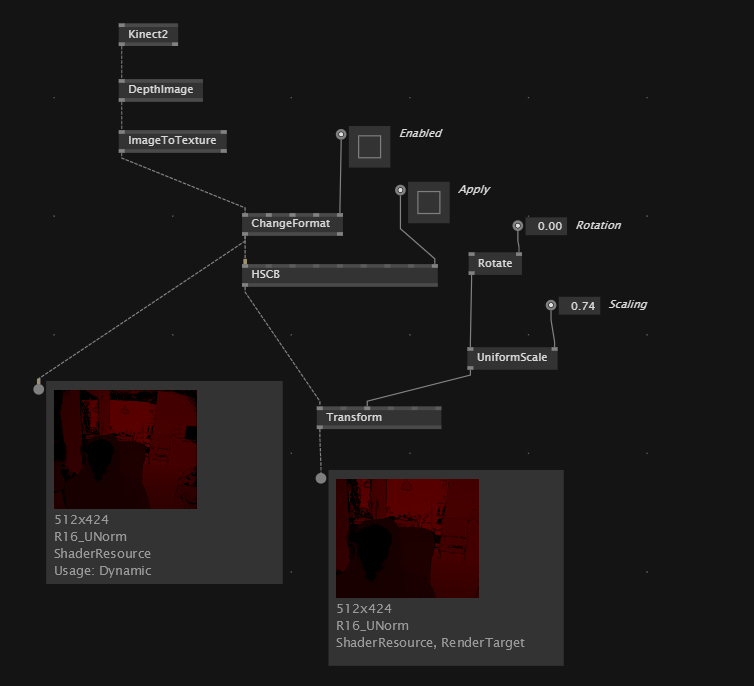

i had to repatch what you posted to understand what you mean, but that’s indeed a funny one.

here’s my try on describing it:
the combination of ChangeFormat AND HSCB results in an unexpected image when Transform with a rotation matrix is used.

kinect

for a quick workaround use the HSCB from VL.Addons which works as expected.

1 Like
3

I’ve had flickers with strides texture fx before, and the addons ones working fine, levels being the main one that I’ve seen it on.

1 Like
4

OT: @motzi how does the recorder work, I remember it there some place, but not how to use it.

5

see here for how to use the recorder.

however, i’m not using this function, because the resulting recordings are huge and oftenly too large for the forum. personally i use ScreenToGif which has better compression options.

2 Likes
