VL_Devices.IDS Failed acquisition

[Raphael]

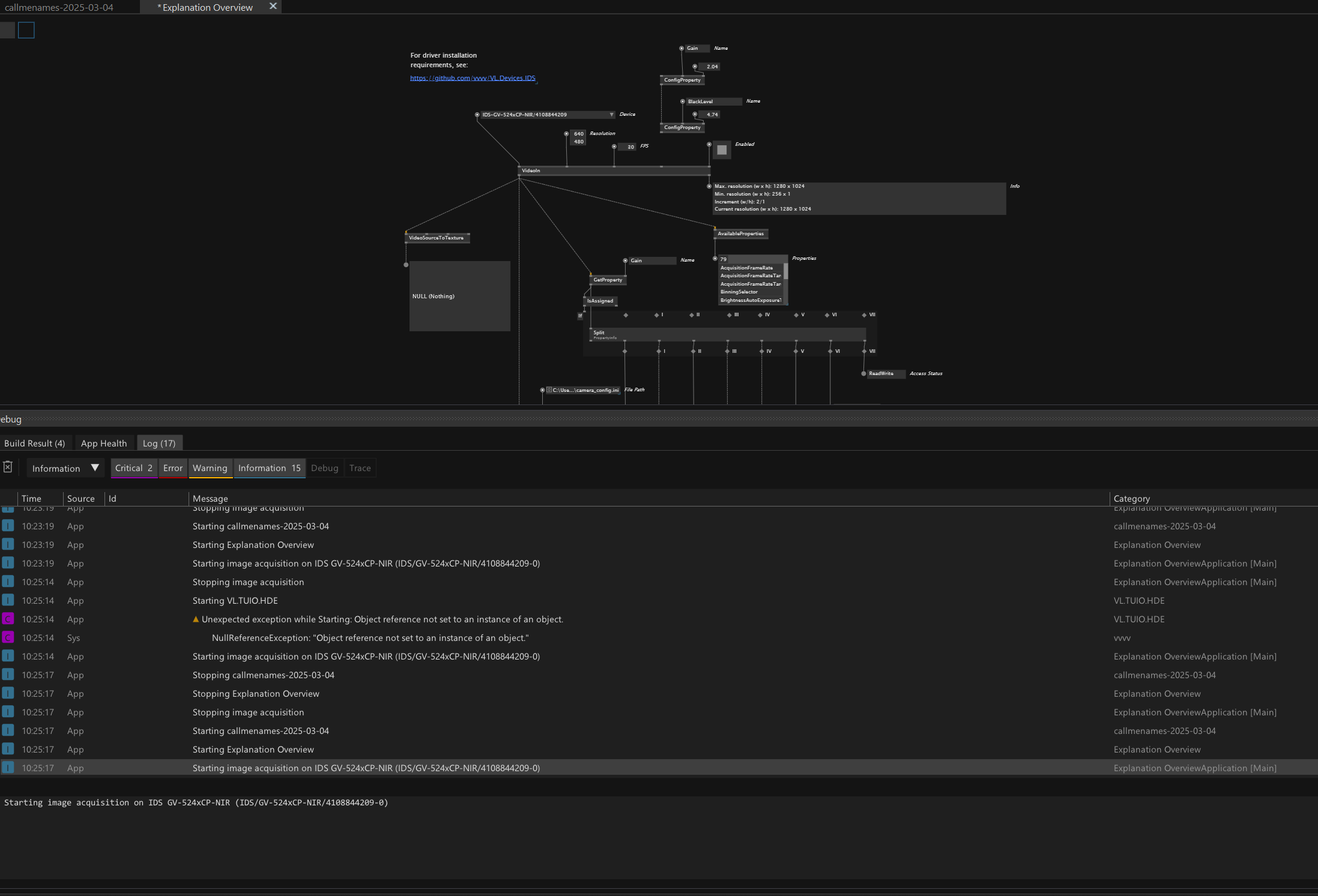

Hello Guys, I just get a Ids camera… : (GV-5240CP-NIR-GL) But I have trouble to get the signal (its working on the ids Software: Ids peak Cockpit) But I got an error on the log on vvvv:

Failed to start image acquisition
System.ApplicationException: Error-Code: 11 (PEAK_RETURN_CODE_NOT_FOUND) | Error-Description: There is no node with the given name (BlackLevel)!
at peak.core.NodeMap.FindNode(String name)
at VL.Devices.IDS.ConfigNode`1.VL.Devices.IDS.Advanced.IConfiguration.Configure(NodeMap nodeMap)
at VL.Devices.IDS.FreshConfig.Configure(NodeMap nodeMap)
at VL.Devices.IDS.Acquisition.Start(VideoIn videoIn, DeviceDescriptor deviceDescriptor, ILogger logger, Int2 resolution, Int32 fps, IConfiguration configuration, String defaultUserSet, Boolean CorrectHotPixels)
at VL.Devices.IDS.VideoIn.VL.Lib.Basics.Video.IVideoSource2.Start(VideoPlaybackContext ctx)

It doesnt seem to be the same problem than here

VL.Devices.IDS sometimes throws an exception on startup that crashes vvvv

Thanks for the suggestions @bjoern I just tried opening a blank vvvv and just load the help patch, getting the same crash. It’s able to populate the IOBox that shows the camera capabilities, but then crashes when (I guess) it tries to access the texture It’s via network edit: the IDS software reports the camera is running at 2FPS, which is super odd. it could correspond to what the exception says about some timeout thing. I don’t have physical access to the machine right now but will report…

Maybe @Elias You got an Idea ?

Thanks you :)

[joreg]

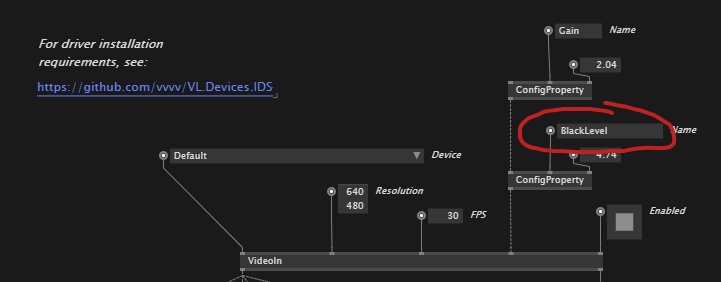

could this just be the helppatch that configures the BlackLevel? does it work if you disconnect the two ConfigProperty nodes?

[Raphael]

Hello Joreg, Yes I just tried that, the error is not there anymore… and the log doesnt show anything … but the image doesnt show up…

[Raphael]

Its ok, If I change the resolution to 1280 / 1024 … its working :)

Thanks you joreg!
