Implementing ICustomRegion in c#

[antokhio]

I’m trying to implement ICustomRegion in C#, i want it that way so i can use it as a context provider to inject services in processes also written in C#. However there is something I can’t really understand:

using VL.Core;
using VL.Core.Import;
using VL.Core.PublicAPI;
using VL.Lib.Collections;

namespace VL.SharpRegion
{
    [ProcessNode(
        Name = "SharpRegion",
        HasStateOutput = true,
        FragmentSelection = FragmentSelection.Explicit
    )]
    public class SharpRegion : ICustomRegion
    {
        // Test something i want to provide
        public record SharpRegionRecord(int Test);

        private ICustomRegionPatch? _currentPatch;
        private SharpRegionRecord _sharedRecord;

        // ICustomRegion implementation
        public Spread<BorderControlPointDescription> Inputs { get; private set; }
        public Spread<BorderControlPointDescription> Outputs { get; private set; }
        public Spread<IncomingLinkDescription> IncomingLinks { get; private set; }
        public Spread<object> InputValues { get; private set; }
        public IReadOnlyList<object> OutputValues { private get; set; }
        public Spread<object> IncomingLinkValues { get; private set; }
        public bool PatchHasChanged { get; private set; }

        [Fragment]
        public SharpRegion()
        {
            _sharedRecord = new SharpRegionRecord(42);

            // Define no border control points initially
            Inputs = Spread<BorderControlPointDescription>.Empty;
            Outputs = Spread<BorderControlPointDescription>.Empty;
            IncomingLinks = Spread<IncomingLinkDescription>.Empty;
            InputValues = Spread<object>.Empty;
            IncomingLinkValues = Spread<object>.Empty;
        }

        [Fragment]
        public void Update(ICustomRegion input) {
             // not sure what to do here
        }

        public ICustomRegionPatch CreateRegionPatch(
            NodeContext context,
            IReadOnlyList<object> initialInputs,
            out Spread<object> initialOutputs
        )
        {
            // Create the user's patch and inject the record
            initialOutputs = Spread<object>.Empty;

            // What to do here ???
            return new SharpRegionPatch(_sharedRecord);
        }

        // Question: How to get actual patch in here?
        private class SharpRegionPatch : ICustomRegionPatch
        {
            private readonly SharpRegionRecord _record;

            public SharpRegionPatch(SharpRegionRecord record)
            {
                _record = record;
            }

            public ICustomRegionPatch Update(
                IReadOnlyList<object> inputs,
                out Spread<object> outputs,
                IReadOnlyList<object> incomingLinks
            )
            {
                // How to expose _record to nodes inside?
                outputs = Spread<object>.Empty;
                return this;
            }
        }
    }
}

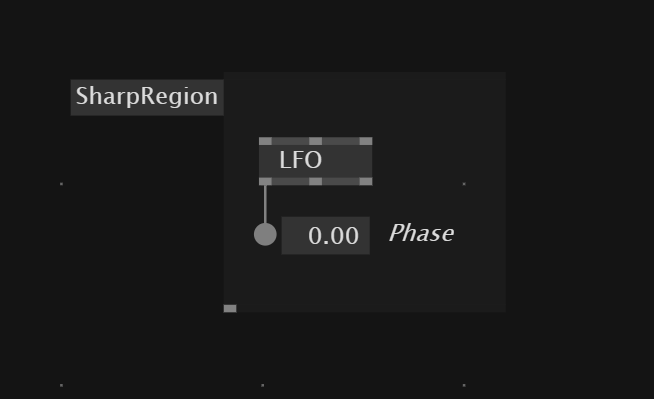

That’s about i can get:

and that’s a repo

[antokhio]

getting somewhere

[antokhio]

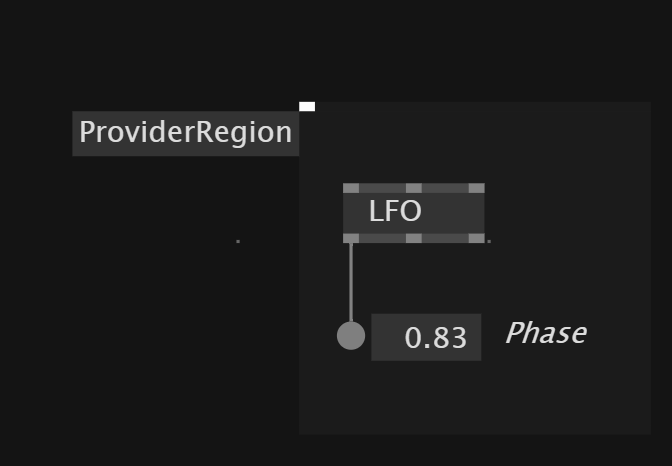

Seems there we go, minimum functionality

ProviderRegion.cs

[antokhio]

Now the question is how to go if I want a Custom Input, or Output in the region:

[Elias]

With 7.0 we introduced IRegiony<TInlay>, please have a look at the docs.

[antokhio]

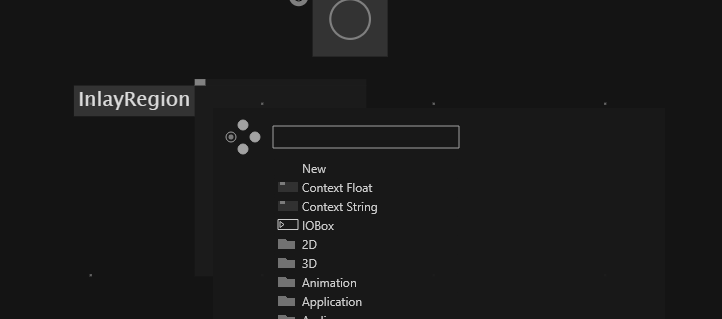

Sorry @Elias I don’t understand what I have to do to get:

I see I can connect splicer, accumulator, bcp, but nor input, output (link i presume):

Code

    [ProcessNode(HasStateOutput = true)]
    [Region(
        SupportedBorderControlPoints = ControlPointType.Splicer
            | ControlPointType.Accumulator
            | ControlPointType.Border
    )]
  public class InlayRegion : IRegion<InlayRegion.IInlay>
  {
      private readonly Dictionary<InputDescription, object?> _inputs = new() { };
        public InlayRegion()
        {
            // Let's try different combinations to see what works for "inner outputs"
            _inputs = new Dictionary<InputDescription, object?>()
            {
                // Option 1: Mark as Link (most likely candidate)
                // A link that originates from inside and flows to the user patch
                {
                    new InputDescription(
                        Id: "ContextString",
                        OuterType: typeof(string),
                        InnerType: typeof(string),
                        Name: "Context String",
                        IsLink: true, // <-- This indicates it's a link, not a control point
                        IsSplicer: false,
                        AccumulatorId: null
                    ),
                    _contextString
                },
                // Option 2: Similar for float
                {
                    new InputDescription(
                        Id: "ContextFloat",
                        OuterType: typeof(float),
                        InnerType: typeof(float),
                        Name: "Context Float",
                        IsLink: false, // <-- Does not differ
                        IsSplicer: false,
                        AccumulatorId: null
                    ),
                    _contextFloat
                },
                // Option 3: Try with different Id vs Name
                {
                    new InputDescription(
                        Id: "ctx_time",
                        OuterType: typeof(string),
                        InnerType: typeof(string),
                        Name: "Current Time",
                        IsLink: true
                    ),
                    DateTime.UtcNow.ToString("yyyy-MM-dd HH:mm:ss")
                },
                // Option 4: Try with same OuterType and InnerType (non-splicer)
                {
                    new InputDescription(
                        Id: "ctx_counter",
                        OuterType: typeof(int),
                        InnerType: typeof(int),
                        Name: "Counter",
                        IsLink: true
                    ),
                    0
                },
                // Option 5: Try with a splicer (different inner/outer types)
                // Maybe context provides a collection but inside sees individual items?
                {
                    new InputDescription(
                        Id: "ctx_splicer",
                        OuterType: typeof(IEnumerable<float>),
                        InnerType: typeof(float),
                        Name: "Splicer Example",
                        IsLink: true,
                        IsSplicer: true
                    ),
                    0.0f
                },
            };
        }

[antokhio]

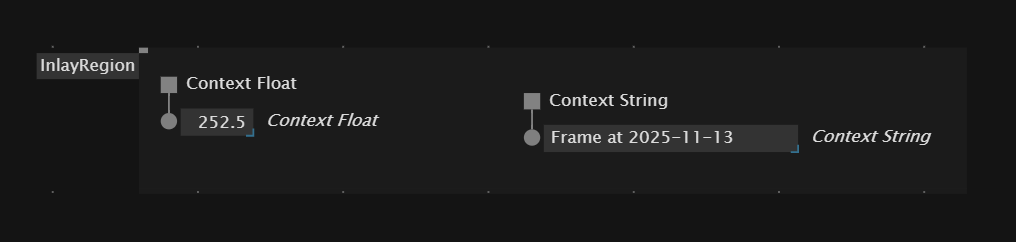

Finally:

  public interface IInlay
    {
        // Parameters here become available as links inside the region!
        void Execute(string contextString, float contextFloat);
    }

This prolly needs some better docs or better to add this as example

[Elias]

Just added ForEach (Key) as an example as well. That one has an input in the patch inlay.

[antokhio]

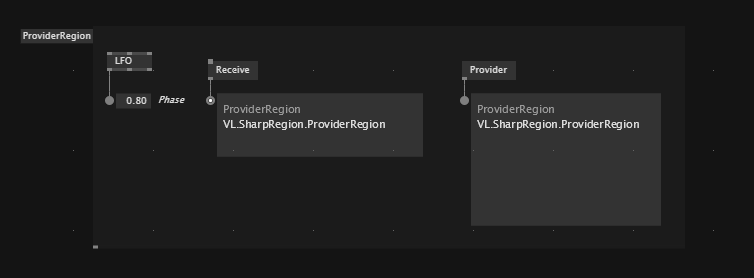

And a final pice of puzzle, with scope provider:

GitHub - antokhio/VL.SharpRegion

[yar]

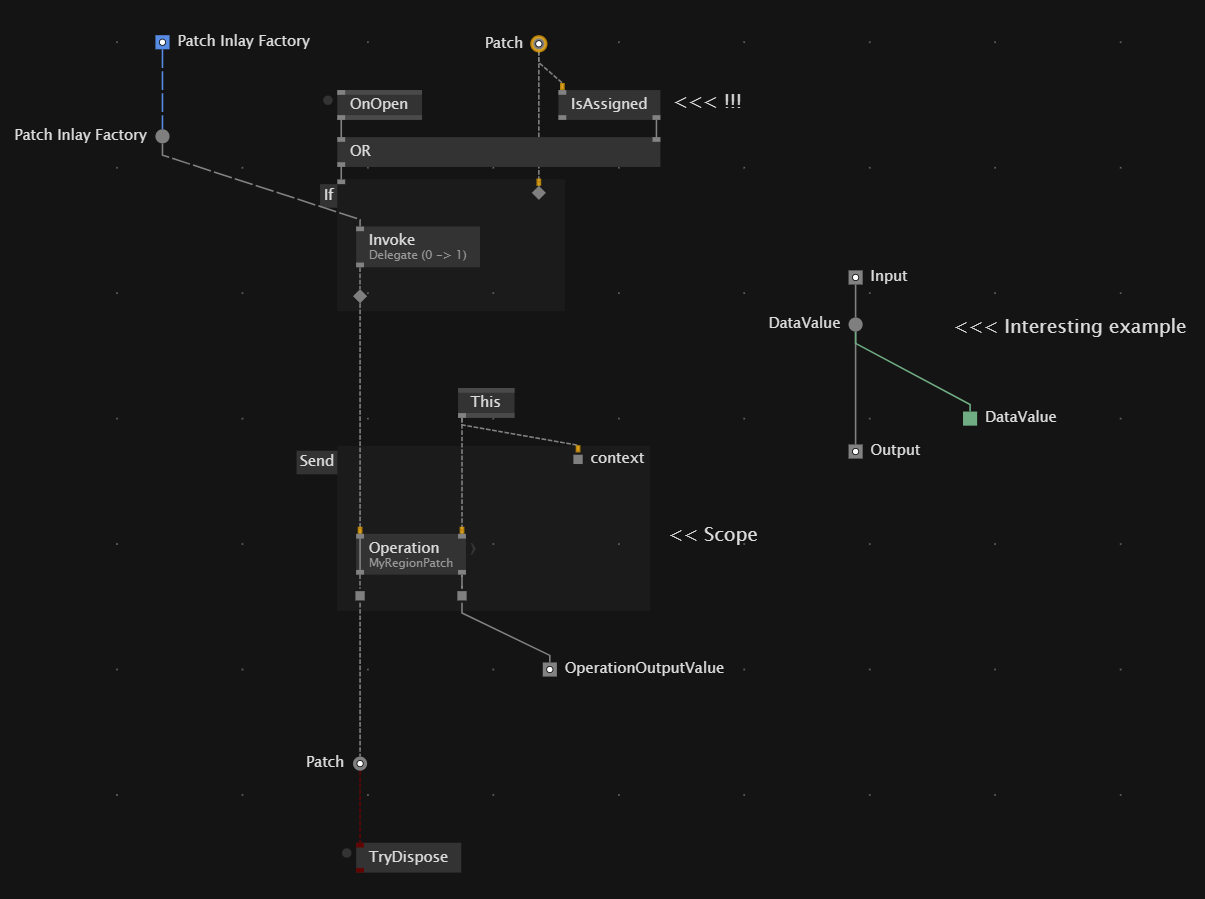

For anyone who might be interested:

CustomRegionNewAPI2025.vl (38.9 KB)
